Vibro Sifter Machine Manufacturers & Exporters in Mumbai, India

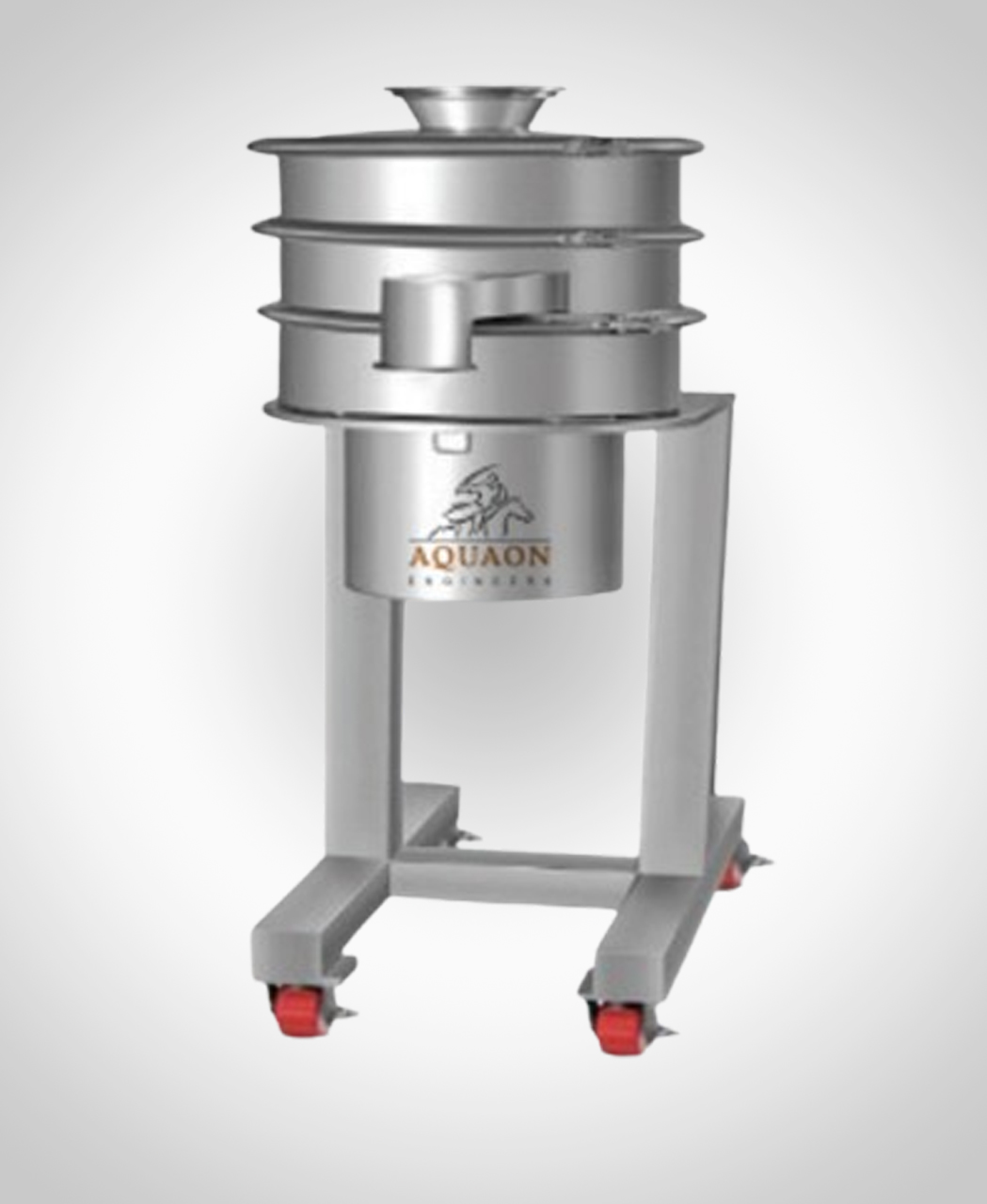

Vibro Sifter

Aquon Engineers is a Vibro Sifter - Vibratory Sifter Machine Manufacturer, Supplier & Exporter in Mumbai, India. A Vibro Sifter is an efficient industrial equipment of screening materials in terms of their particle size in industries such as; this machine is used in pharmaceutical industries to sieve different sizes of products such as powders, food processing industries, chemical, and cosmetic industries among others. It works by oscillating a screen or sieve that results to movement of material across the face of the mesh whereby granules of different size can disengage through the mesh. The machine makes the product to be of quality since it will force out unwanted particles or even grade the material to the required size.

Vibro Sifter Working Process

The Vibro Sifter process is a very vital process in many industries like the pharmaceuticals, foods, and chemicals industries. It encompasses the employment of a vibrating sifter machine to perform size separations as well as to classify solid particles or even powders. Feeding of the material is typically the first step that occurs once the material is supplied to the machine’s sieve or screen. Every time shakes the machine, particles rub the screen surface on which the smaller particles pass through the mesh of the screen, while the larger ones are left behind on the screen. This separation creates an easy way of grading and even classifying the material hence creating quality in the final product. The Vibratory Sifter is employed to purging chaffs, to reduce the size of particles or sort the materials into different grades, it is, indeed a very vital equipment infact, in adding up to product quality and productivity. Cleaning and maintaining the structure of the machine is also very easy and this is especially important in processes where food industries require hygiene and tend to avoid contamination.

Technical Specifications

Model

12"

20"

30"

36"

48"

SCREENS

SS 316/304

SCREEN DIA.

335 mm

520 mm

750 mm

950 mm

1220 mm

CAPACITY/HOUR

20 to 70 Kgs

20 to 140 Kgs

80 to 300 Kgs

200 to 400 Kgs

CHARGING HEIGHT

1080 mm

1200 mm

1050 mm

DISCHARGE HEIGHT

625 mm

750 mm

500 mm

ELECTRIC MOTOR

0.25 HP Vibratory Motor

0.5 HP Vibratory Motor

1.5 HP Vibratory Motor

Vibratory Sifter Key Features

Ideal For Gradation & Separation of Dry Powder, Granules and semi-Solids/Liquids.
Models “12”,”24”,”30” &”36” 48”
Modular Design of Desks with Easily Fitted Clamps.
Dust Free Arrangement, Lead Free Sieves.
Easy Dismantling and Cleaning
Output 80 to 200 Kgs/hr Depend Upon Characteristic of Material
GMP model

Frequently Asked Questions (FAQ'S)

What industries use Vibro Sifters Machine?
Vibro sifters are commonly used industries especially in pharmaceutical, food processing industry, chemical industries and the cosmetic industries. They are vital in any area where there is needed the division between particles of different sizes.
What materials can be processed with a Vibro Sifter?
The mineral vibro screen can sort powdery materials, granules and also liquids of various sorts. This indicates that the nature of material that can be fed to it depends on the mesh opening of the screen most preferably used.
How do I choose the right mesh size for my Vibro Sifter?
The other characteristic of the mesh size to be considered is dependent on your actual process requirements such as size distribution. Before choosing the mesh size one can consult the manufacturer or a process engineer.
Is it easy to clean a Vibro Sifter Machine?
Yes, our vibro sifters Machine are easy to clean, this is due to the design of the equipment. They can be easily disconnected and connected; it can be useful to adhere to the measure of hygiene.
What maintenance is required for a Vibro Sifter Machine?
The only maintenance on the machine is inspections of the screens and periodic cleaning of the same, greasing of the motor, and assessment of the likelihood of the material wearing out. Using guidelines while using the product can enable it to work for a longer time. Continuing the flow of the idea established above, it can be concluded that Using guidelines while using the product can enable it to work for a longer time.
